Name: LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-750B
Price: 17500 USD
Availability: InStock

En casa. > productos > máquina que pega de la esquina de la caja >

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Lugar de origen:

Porcelana

Nombre de la marca:

Lishunyuan

Certificación:

Número de modelo:

LY-750B

Documento:

LY-750B Automatic Corner Pa...up.pdf

Contacta con nosotros

Solicitar una cita

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Detalles del producto

Modelo:

LY-750B

Tamaño del papel máximo:

740*640mm

Grosor del papel:

1-4mm

Tamaño de caja (máx.):

L500*W400*H150mm

Tamaño de caja (mín.):

El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef

Tamaño de la caja de la funda (máx.):

Largo 400 x ancho 120 x alto 150 mm.

Tamaño de la caja de la manga (mín.):

L80*W30*H20mm

Altura de pila de papel:

1000 mm

Velocidad de producción:

25-45 unidades/minuto

Fuente de alimentación:

380V/50Hz

poder total:

3,88 KW

Presión de aire:

0.5-0.8MPA

Tamaño del ancho de la cinta:

19 mm

Peso de la máquina:

1280KG

Tamaño de la máquina:

2250*2100*2200mm

Resaltar:

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Condiciones de pago y envío

Cantidad de orden mínima

Precio

Negotiate

Detalles de empaquetado

caja de película y madera contrachapada

Tiempo de entrega

15-20 días

Condiciones de pago

T/T

Capacidad de la fuente

15 SETS/MONTH

Productos relacionados

Máquina pegadora de esquinas múltiples LY-430TJ Máquina pegadora de esquinas Máquina para cajas de fundas

Consiga el mejor precio

El video

Máquina de pegado de esquina de caja LY-750 con aplicador de refuerzo de esquina totalmente automatizado para un procesamiento rápido y preciso del cartón

Consiga el mejor precio

LY-TJ40 Máquina semiautomática de pegado de la esquina de la caja Velocidad de operación 20 - 40 PCS / min

Consiga el mejor precio

El video

Máquina pegadora de esquinas completamente automatizada LY-750 85pcs/Min

Consiga el mejor precio

Contacta con nosotros

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Contacta ahora

Descripción del producto

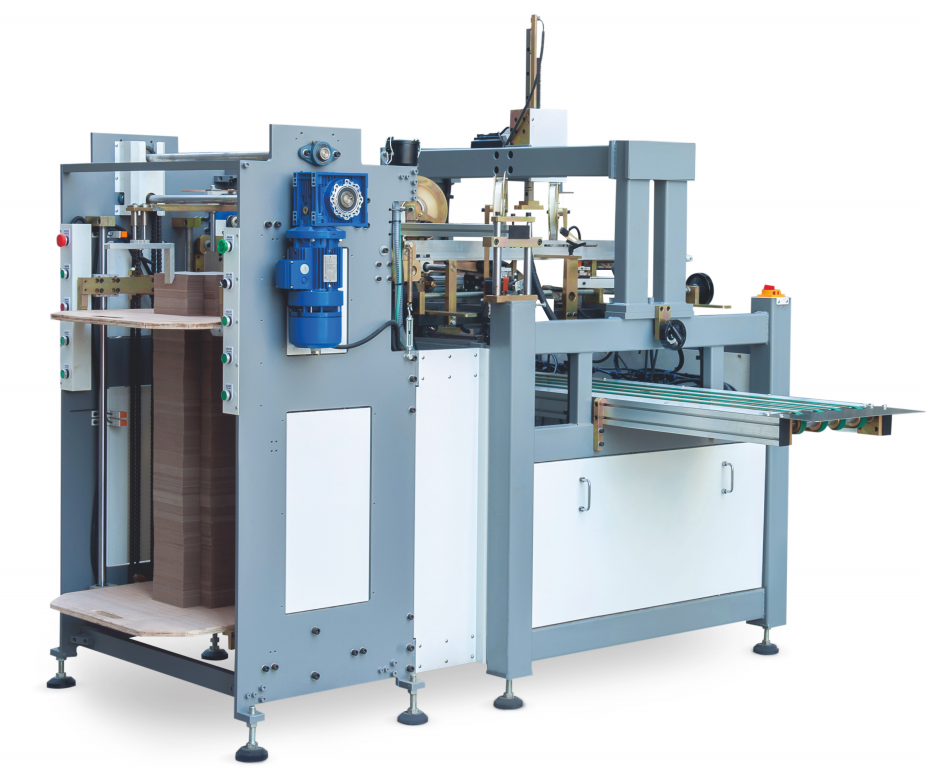

LY-750B Automatic Corner Pasting Machine (Intelligent Setup)

This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Key Features

Intelligent setup interface system, which is simple, easy to learn, understand and operate.
Setting up time in 10mins.
The full servo drive control system and PLC programming ensure the accuracy and performance of the product.
Non-stop feeding, reduce labor intensity,decrease machine stopping time .
The paper feeding adopts a belt-driven pull-out system, effectively increasing production output.
Compatible with PET and kraft paper tape, providing a variety of options for your products.
The production efficiency of this machine is 3 to 5 times that of traditional manual corner pasting.
Multiple functions able to do square boxes and sleeves boxes.

Product Examples

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Product Types

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Technical Specification

Model	LY-750B
Maximum paper size	740*640mm
Paper thickness	1-4mm
Box size(max)	L500W400H150mm
Box size(min)	L80W60H20mm
Sleeve box size(max)	L400W120H150mm
Sleeve box size(min)	L80W30H20mm
Paper stack height	1000mm
Production speed	25-45 pcs/min
Power supply	380V/50Hz
Total power	3.88kw
Air pressure	0.5-0.8Mpa
Tape width size	19mm
Machine dimension	255021002200mm
Machine weight	1280kg

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
