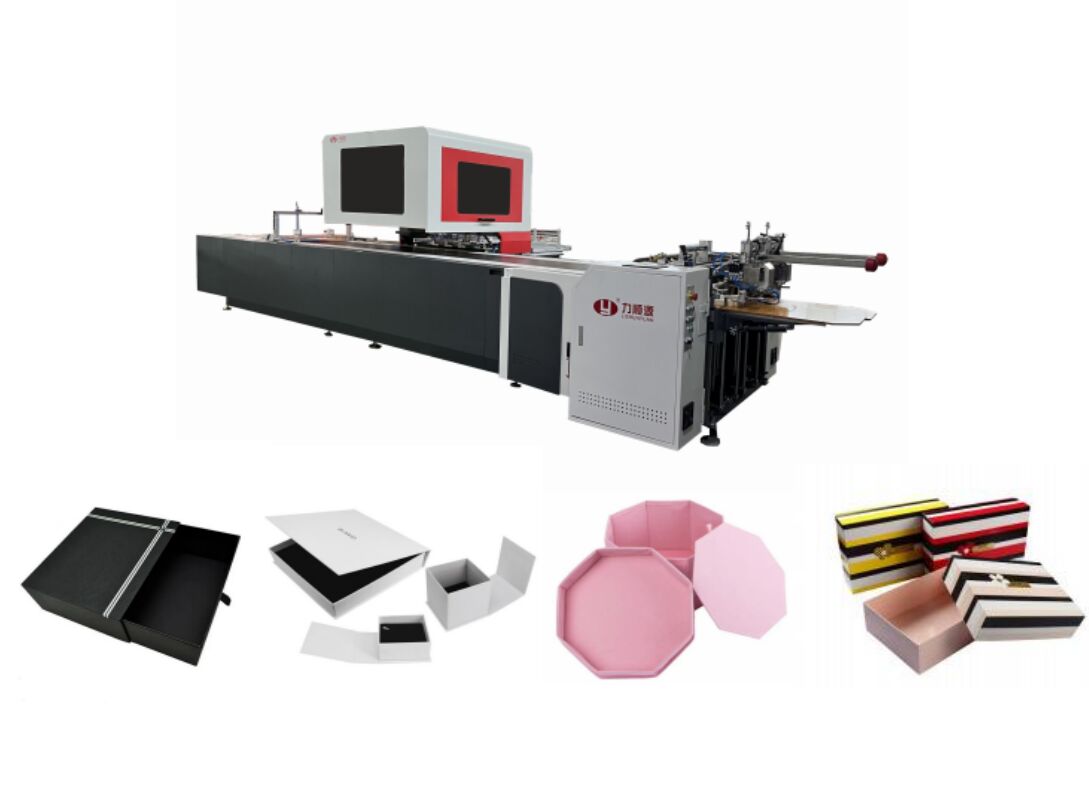

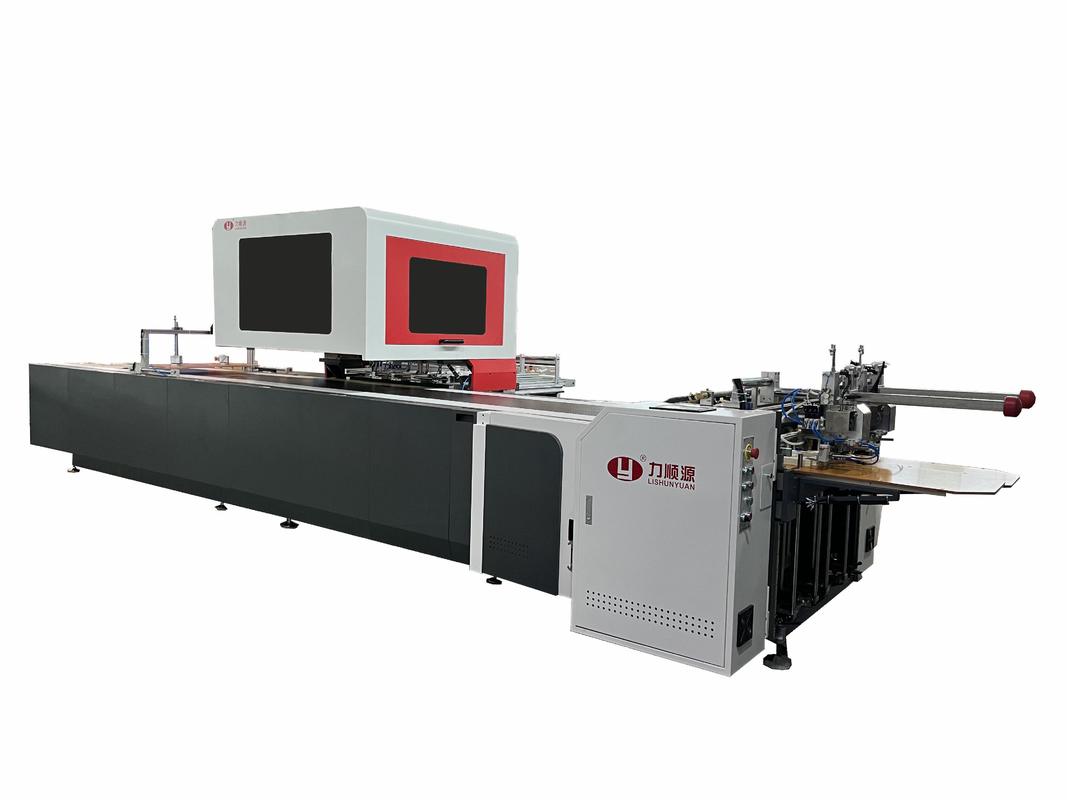

LY-850DN/DM Multifunctional Double Visual Positioning Machine

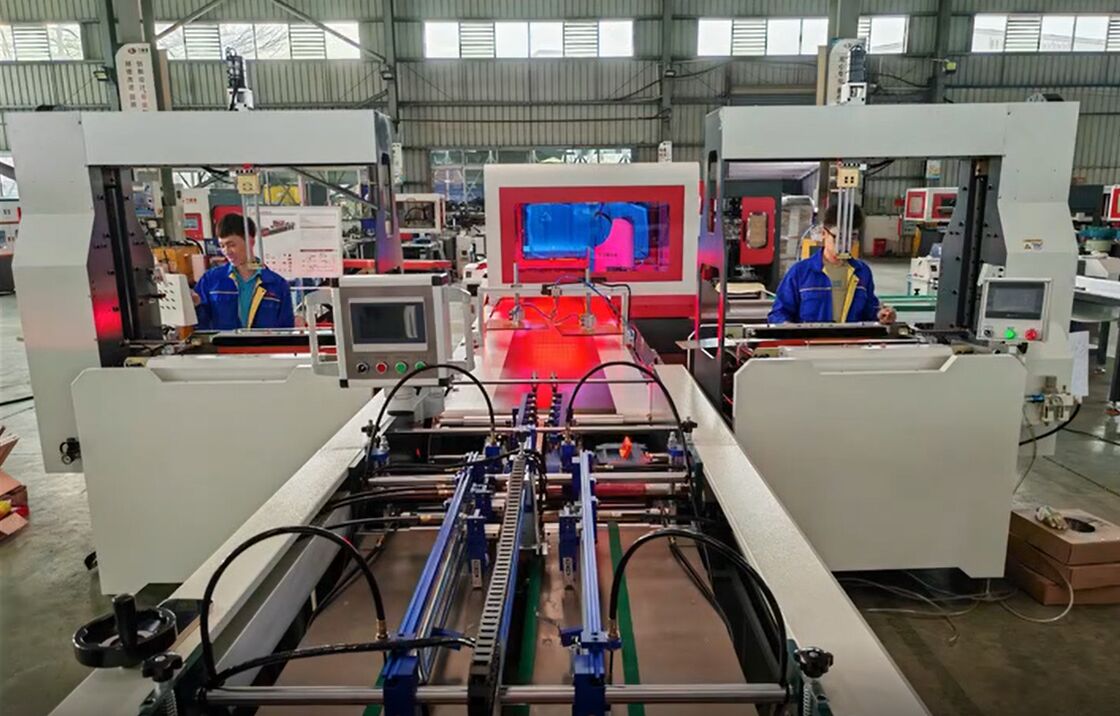

The LY-850DN/DM Multifunctional Double Visual Positioning Machine features dual feeding positions with independent control, enabling stable operation with different paper thicknesses simultaneously. Independent servo motor control for feeding prevents double sheets and misalignment. Equipped with 4 sets of high-precision cameras and robotic arms, this machine achieves box positioning accuracy of ±0.1mm.
This equipment handles positioning for rigid boxes, bookcases, drawer boxes, irregular shape boxes, and other products. It can integrate with fully-automatic or semi-automatic making machines, including automatic four corner taping machines, forming machines, wine box machines, cover machines, lining machines, and case making machines.
Key Features
- Double feeding position with independent servo motor control for stable operation with different paper thicknesses
- Independent servo motor feeding control prevents double sheets and misalignment
- 4 sets of high-precision cameras and YAMAHA robot arm ensure positioning accuracy of ±0.05mm
- YAMAHA robot arm accurately positions various products including rigid boxes, case makers, coverings, plastic boxes, wooden boxes, and irregular shaped boxes
- Capable of producing Rigid Box and Hard Cover (Case Maker) simultaneously
- Simultaneous box and case production with capacity up to 35-45 PCS/Min
- Easy setup enhances productivity and increases enterprise profit
- Reduces overlapping investment while meeting diverse product demands
Technical Specifications
| Parameter |
Single Sheet |
Double Sheet |
| Paper Size |
W: 80-800mm
L: 120-1000mm |
W: 80-375mm
L: 120-900mm |
| Paper Thickness |
100-350g/m² |
| Cardboard Thickness |
＞2mm |
| Finished Box Size |
L: 65-700mm
W: 65-400mm
H: 5-120mm |
L: 65-350mm
W: 65-350mm
H: 5-120mm |
| Finished Case Size |
L: 65-1000mm
W: 65-500mm |
L: 65-375mm
W: 65-375mm |
| Precision Accuracy |
±0.05mm |
| Max Power |
11KW |
| Min Width of Spine |
30mm |
| Gap of Case |
1-4mm |
| Production Capacity |
25-45 PCS/MIN |
30-45 PCS/MIN |
| Power Supply |
380V/50Hz |
| Machine Dimension |
L7415 × W2510 × H2000mm |
| Machine Weight |
2000kg |
Process Flow Diagrams
For Boxes:
For Hard Cover:
For Sleeve Boxes:
Packing
Company Introduction
Founded in 2001 and situated in Dongguan City, Guangdong Province, LiShunyuan boasts a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has built a comprehensive sales and after-sales service network across China, with its products exported to over 40 countries and regions spanning Europe, America, Southeast Asia, South America, the Middle East and Africa.
Innovation stands as LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, which covers the rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in the production of premium gift boxes, mobile phone packaging boxes, cosmetic boxes, wine and liquor boxes, as well as other high-end boutique packaging boxes.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the development strategy of "Strive for Perfection, Forge New Paths", LiShunyuan is committed to R&D and development of high-performance, high-efficiency new products for the packaging industry, and is at the forefront of driving the rapid advancement of intelligent automation within the sector.
Our Services & Strength
We offer industry-competitive machinery, a professional quality control team, and comprehensive customer service. At LiShunyuan, we place great emphasis on providing full-spectrum support to our clients - spanning from pre-sales consultation and custom machinery development tailored to specific requirements, to the manufacturing of box-making equipment and ongoing, thorough after-sales support. We are committed to delivering maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging boxes, all fully aligned with the unique needs of each individual client.
Certifications
Workshop
Exhibition
Quality After-Sales Service
- 1 Hour Service - We reply to service requests within one hour with solution suggestions
- 12 Hours Service - The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours - Maintenance team arrives within 24 working hours for customers within 500km of service points
- 1 Time/Month - Monthly customer revisits ensure ongoing satisfaction and support
- Pre-sale Service - Customer personnel training available before delivery with professional electronic and mechanical engineers
- Sale Services - Technical engineers provide installation, debugging, and one week of free training services
- After-sales Service - Complete customer files, regular follow-ups, software/hardware updates, and comprehensive spare parts support
