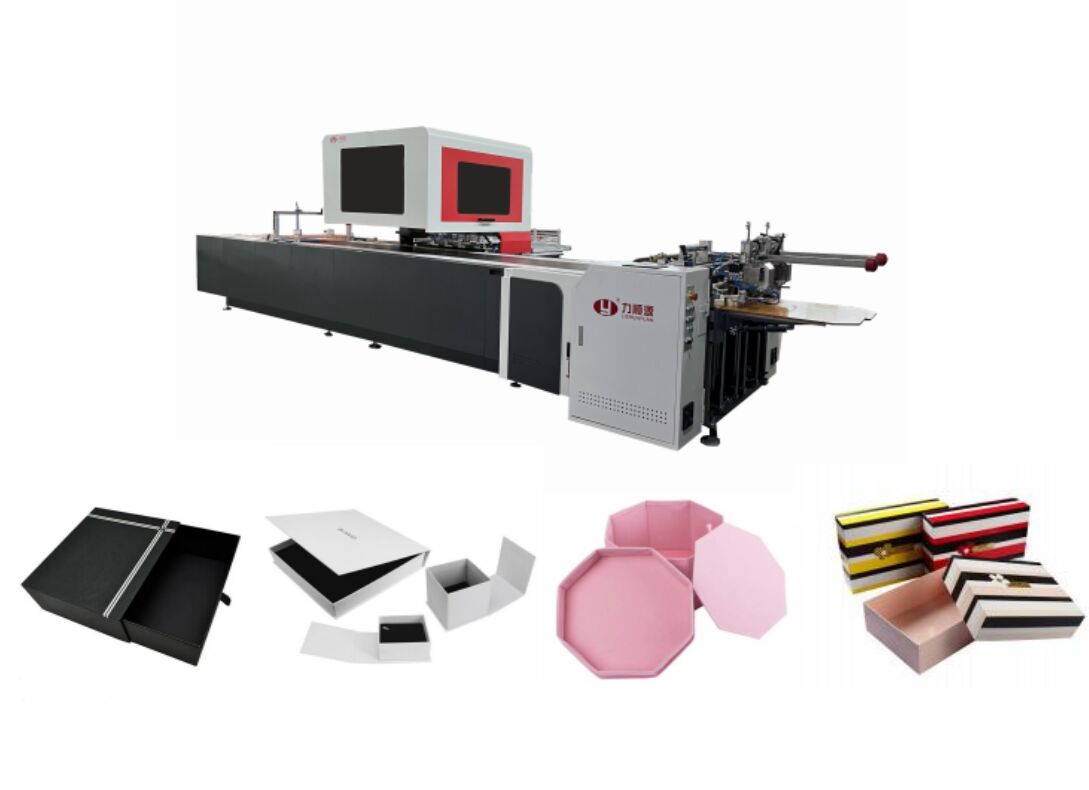

Automatic Double Positioning Machine Making Box,Case Maker
Description
Double Visual Positioning Gluing Machine can realize high-accuracy in the rigid box, case maker, lining,wing assembly, round tube etc. It is suitable for a variety of high-quality gift box which need gluing, like Phone box, Cosmetic box, Jewelry box, Watch box, Wine box, Cigarette box, etc.
Product Features
1. Positioning part is a separate module.
2. Positioning accuraly : ±0.05mm.
3.Transfer version time :10min.
4. Can position boxes and cases.
Specification
| Max /size of double boxes |
MAX:350mm*250mm*120mm
MIN:45mm*45mm*10mm
|
| Max size of single box |
MAX:700mm*400mm*120mm
MIN:45mm*45mm*10mm
|
| Min size of box |
45mm*45mm*10mm
|
| Max size of case |
1000mm*500mm
|
| Machine dimension |
L2600*W1800*H1900mm
|
| Max size of gluing paper |
750mm*750mm
|
| Min size of gluing paper |
90mm*40mm
|
| Speed of double positioning |
20-40 pcs/min
|
| Speed of single positioning |
15-30 pcs
|
Facility profile:
1. Double feeding position and independent control by different servo motor,More stable to run different thickness paper at the same time.
2. Independent control by different servo motor for feeding, avert double sheet and incline.
3. Within 4 sets of high precision cameras and YAMAHA robot arm,Positioning accuracy of ± 0.05mm.YAMAHA robot arm are adopted to accurate position all kinds of product ,such like rigid box, case maker, covering, plastic box, wooden box, irregular shaped box ,etc.
4. Able to production Rigid Box and Hard Cover(Case Maker) at the same time
5. Able to production box and case at the same time, Capacity up to35-45 PCS/Min.
6. Easy to setup enhance productivity and increase enterprise profit
7. Decreased your overlapping investment for meeting products demand, boosted machine’s service
Details:
Separate feeding control by servo Four cameras YAMAHA Robot arm
Process flow:
For boxes:
For hard cover:
For sleeve boxes:
Layout for two boxes:
Company Introduction:
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province, and has a modern standard workshops of 20000 square meters, after 18 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
